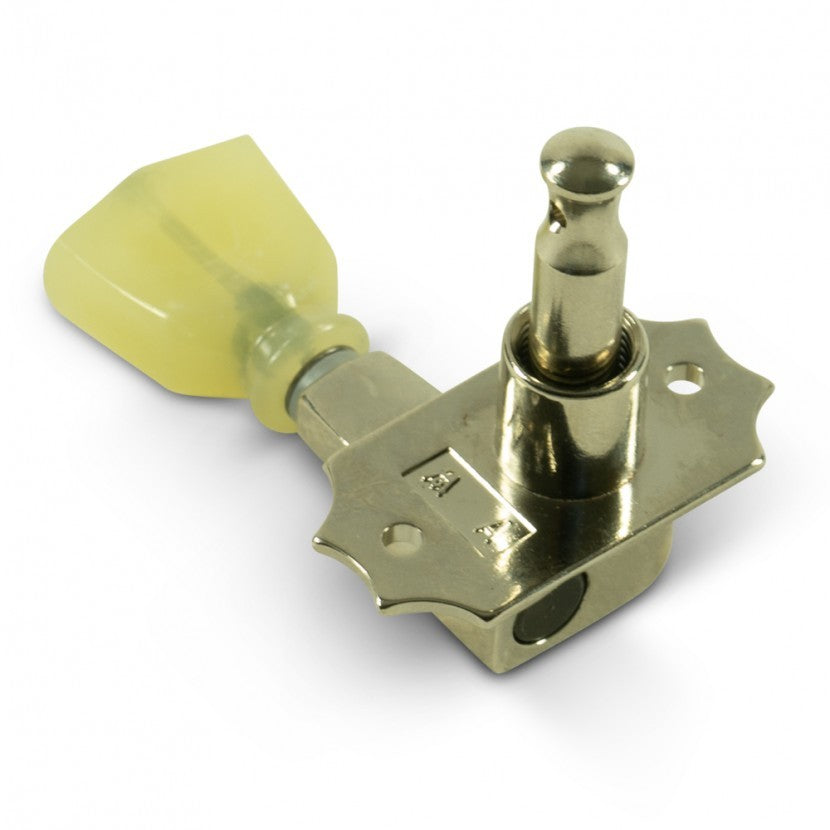

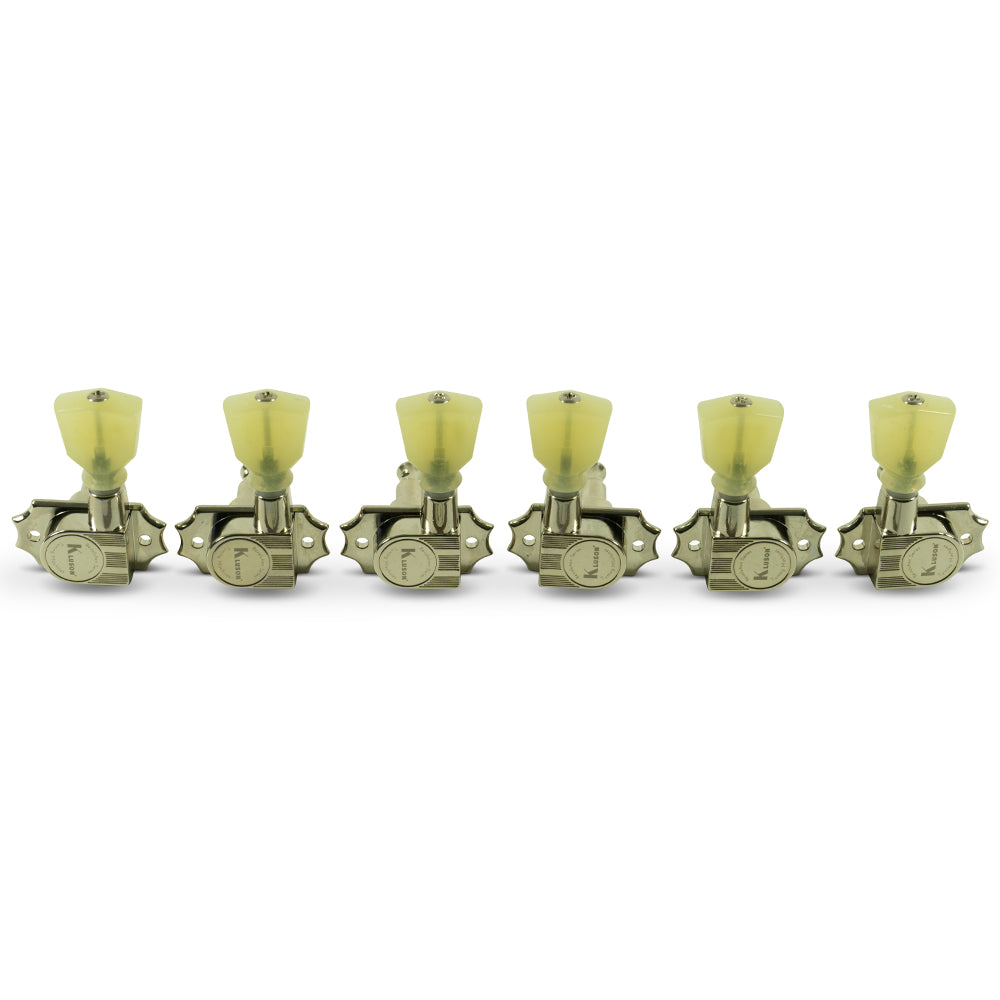

The Kluson® Revolution 19:1 high ratio G-Mount tuning machine. Kluson® has truly introduced a game changer with the traditional footprint and newly designed sealed diecast housing. These state of the art tuning machines are designed to directly retrofit diecast tuning machines with a hex head bushing, traditional Kluson® two-screw mounting pattern and modern 25/64 inch peghole.

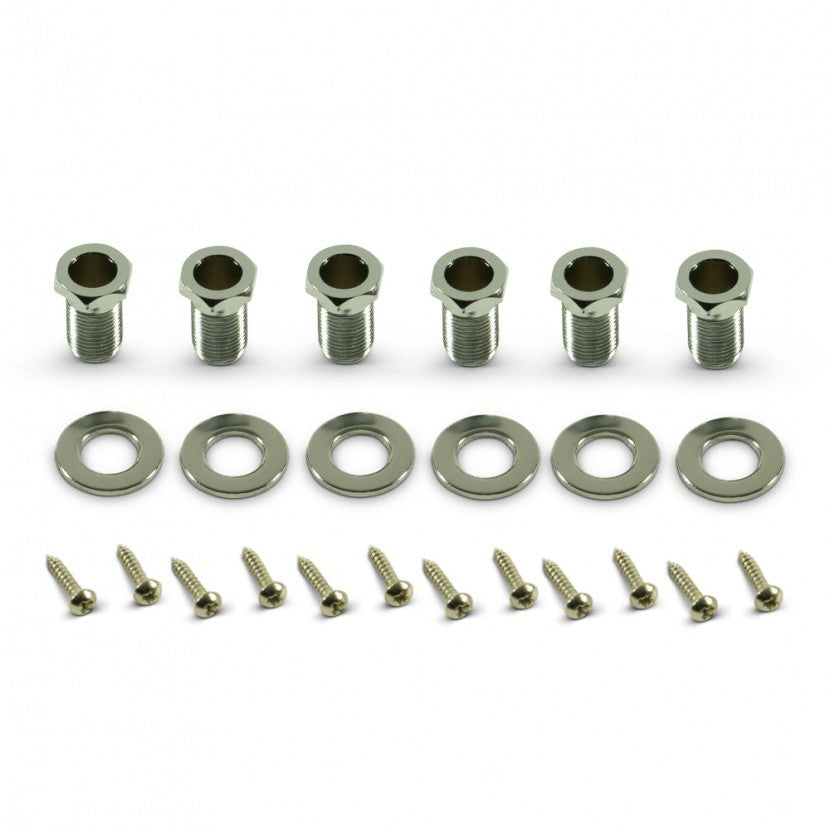

The vintage outline, metal keystone button and pin-stripes pay tribute to Kluson® heritage while the brand new housing appearance incorporates all the features the modern guitarist demands. High gear ratio guarantees silky smooth operation, fine tuning stability with no backlash, all in a sealed one-piece housing! All mounting hardware is included.
- Gear Ratio= 19:1
- String Post Overall Height= 1 3/32 in.
- String Post Diameter= 6mm
- String Thru Hole Ctr Height= 29/32 in.
- Bushing Type= Screw-in Hex Head
- Peg Hole Requirement= 25/64 in. (10mm)
- Mounting Screws required = 2
