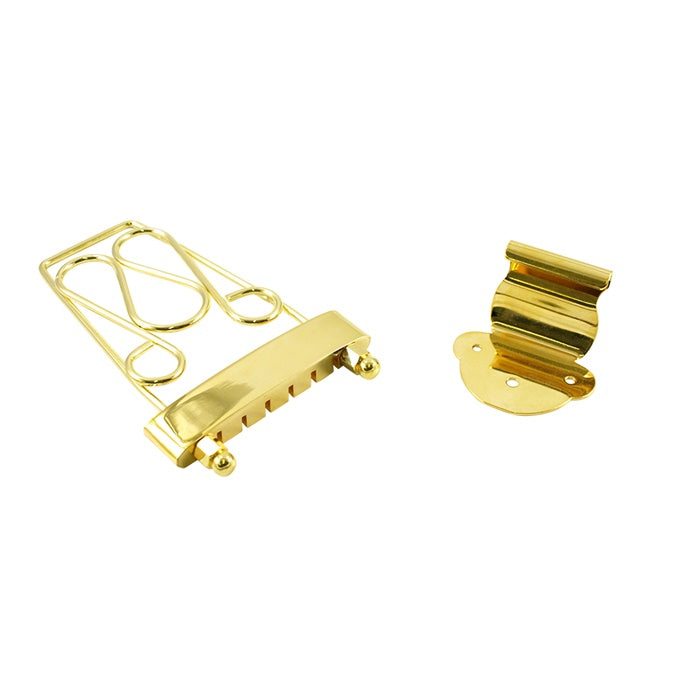

This tailpiece for archtop guitars is a classic design with decorative metalwork supporting the shape of the bracket that links to the tailpiece hinge. High quality plating available in both gold and chrome.
Mounting Hole Locations:
From top curve in bracket mount to the first two screw holes= 9/16 inches
Width between first two mounting screw holes= 1 11/32 inches
From top to single bottom screw hole/strap peg= 1 inch
Length of Bracket from curve to hinge location= 1 3/16 inches
Length from wire hinge to string mount= 4 1/2 inches
String spacing E to E on tailpiece= 1 31/32 inches
Width of metal string mount bracket= 11/16 inches
