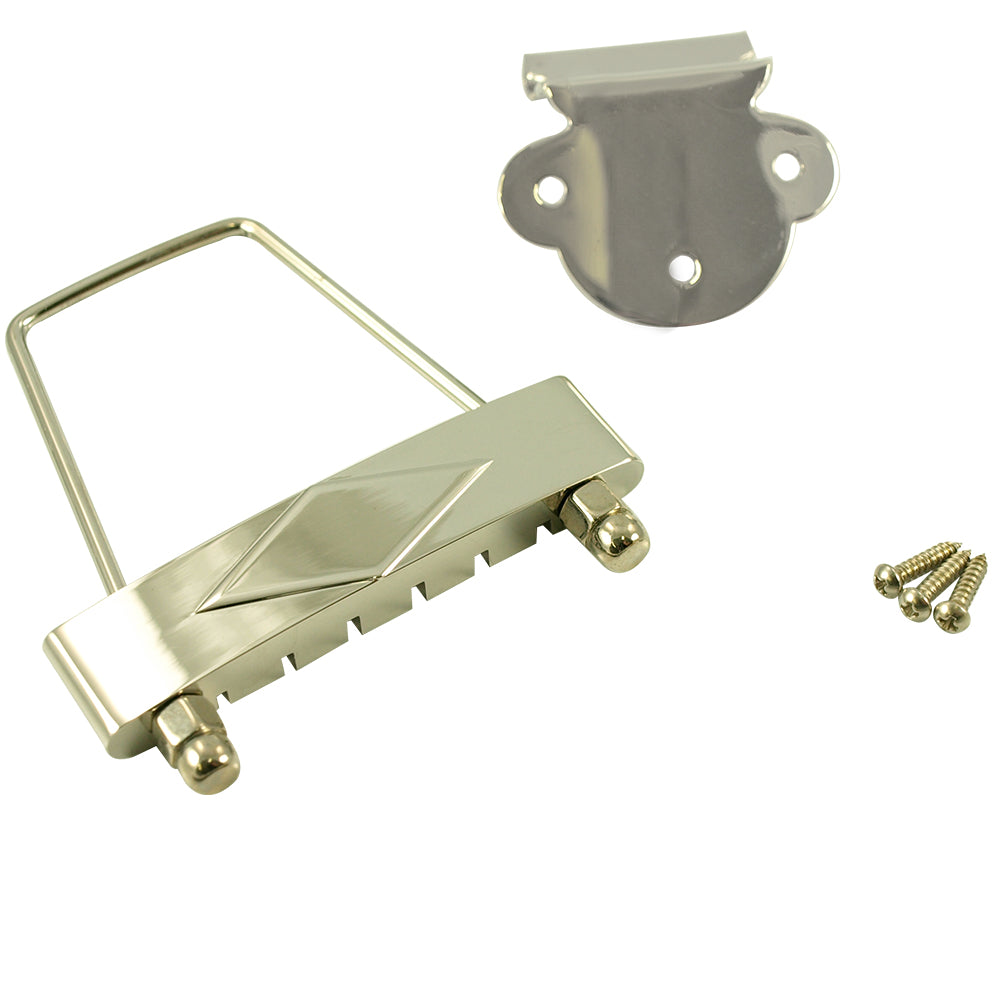

This is a short version of the standard ES-335 style tailpiece which was also used on many arched top instruments.
- Overall length of Tailpiece not including hinge= 3 1/8 inches
- Side to Side width at bar= 3 9/32 inches
- Width of string bar = 47/64 inches
- String Spacing at Bar = 1 61/64 inches
- Mounting Area of Hinge length = 1 1/2 inches
- Mounting Area of Hinge Width - 2 inches
- Mounting hole location bottom center = 11/32 inch from bottom edge
- Two Mounting hole locations from side edges = 5/16 inches.
- Two mounting hole locations Apart from each other = 1 25/64 inches
- Upper side of hinge length = 1 1/8 inches
- Upper side of Hinge width = 1 25/64 inches
