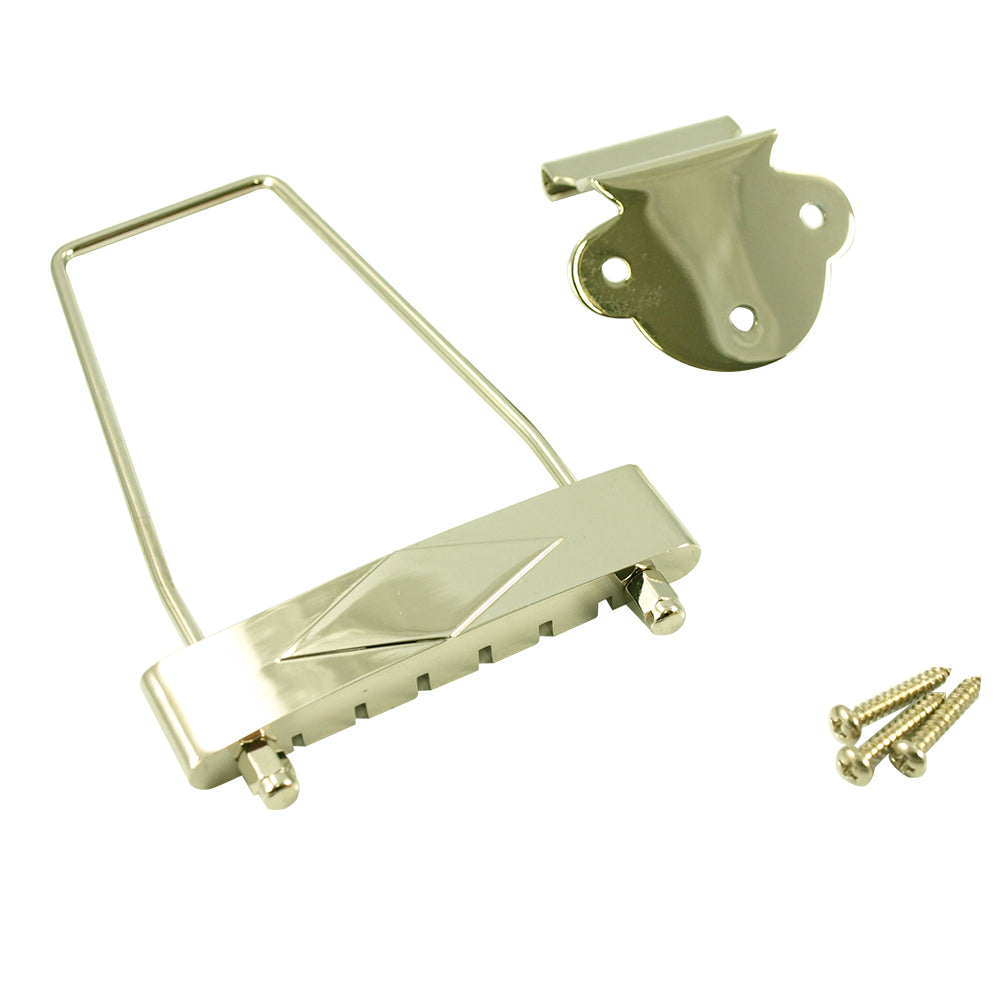

This tailpiece along with a few other types was used on many different model Gibson® guitars including the following models: L-50, L48, ES-125, ES-330, etc. Nickel Finish
- Tailpiece Length (without hinge)= 4 5/8 inches
- Width at Bar= 3 19/64 inches
- Width of Bar= 47/64 inches
- String Spacing at Bar= 1 61/64 inches
- Mounting Area of Hinge Length= 1 1/2 inches
- Mounting Area of Hinge Width= 2 inches
- Mounting hole location bottom center= 11/32 inch from bottom edge
- Two Mounting hole locations from side edges = 5/16 inches.
- Two Mounting hole locations Apart from each other = 1 25/64 inches
- Upper side of Hinge Length = 1 1/8 inches
- Upper side of Hinge Width = 1 25/64 inches
